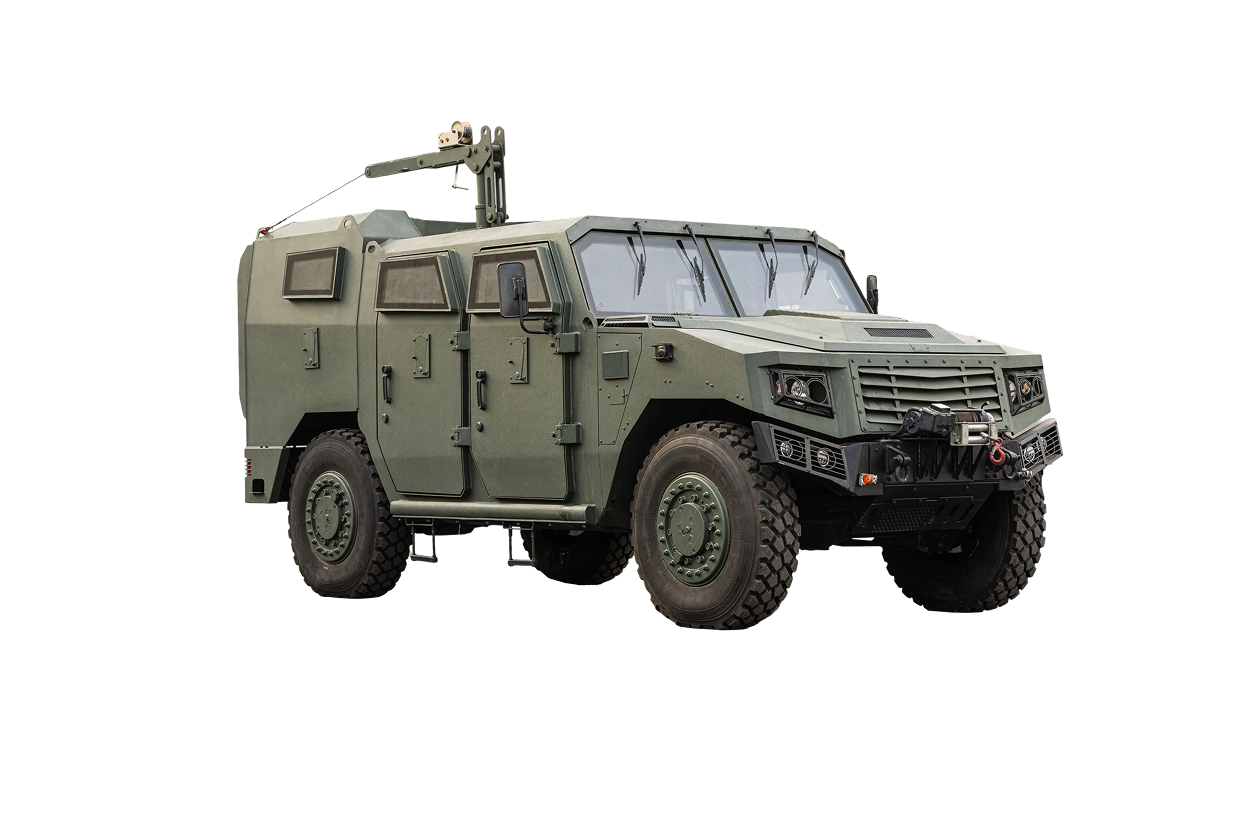

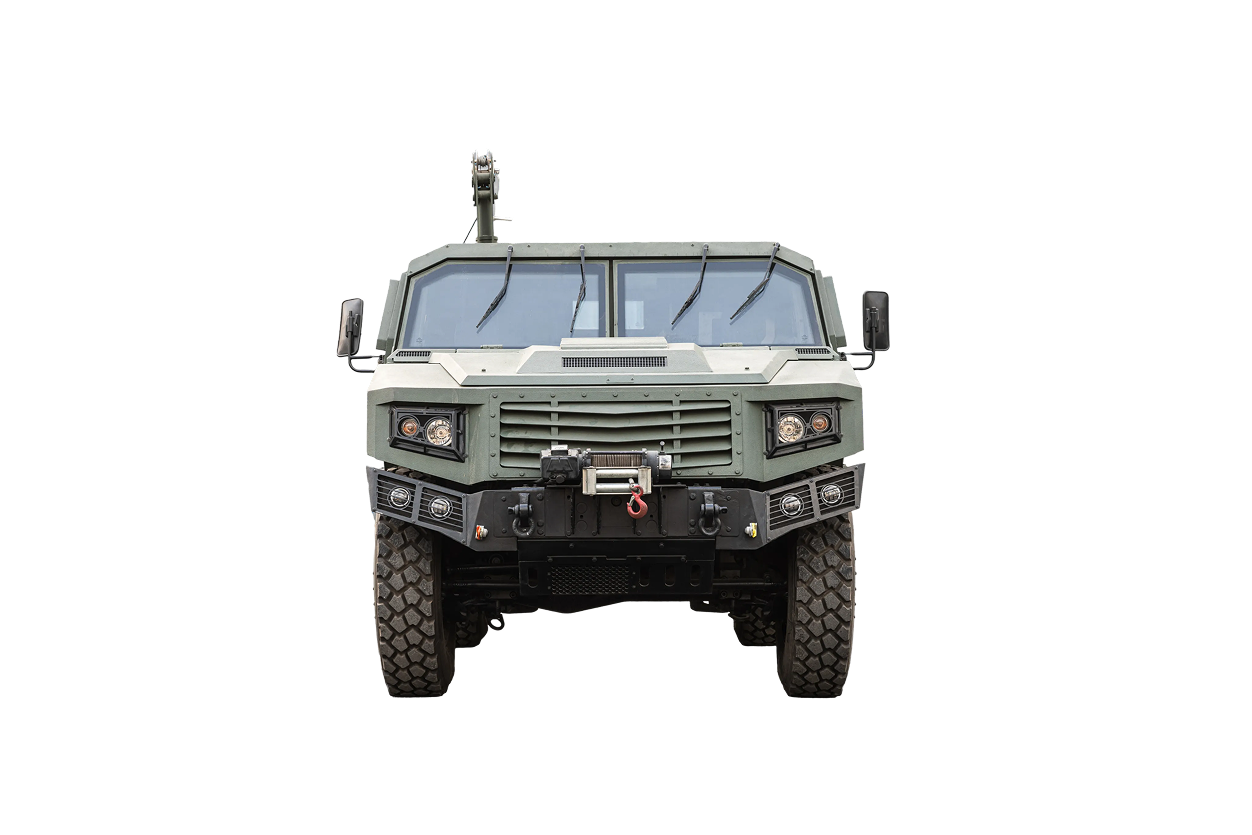

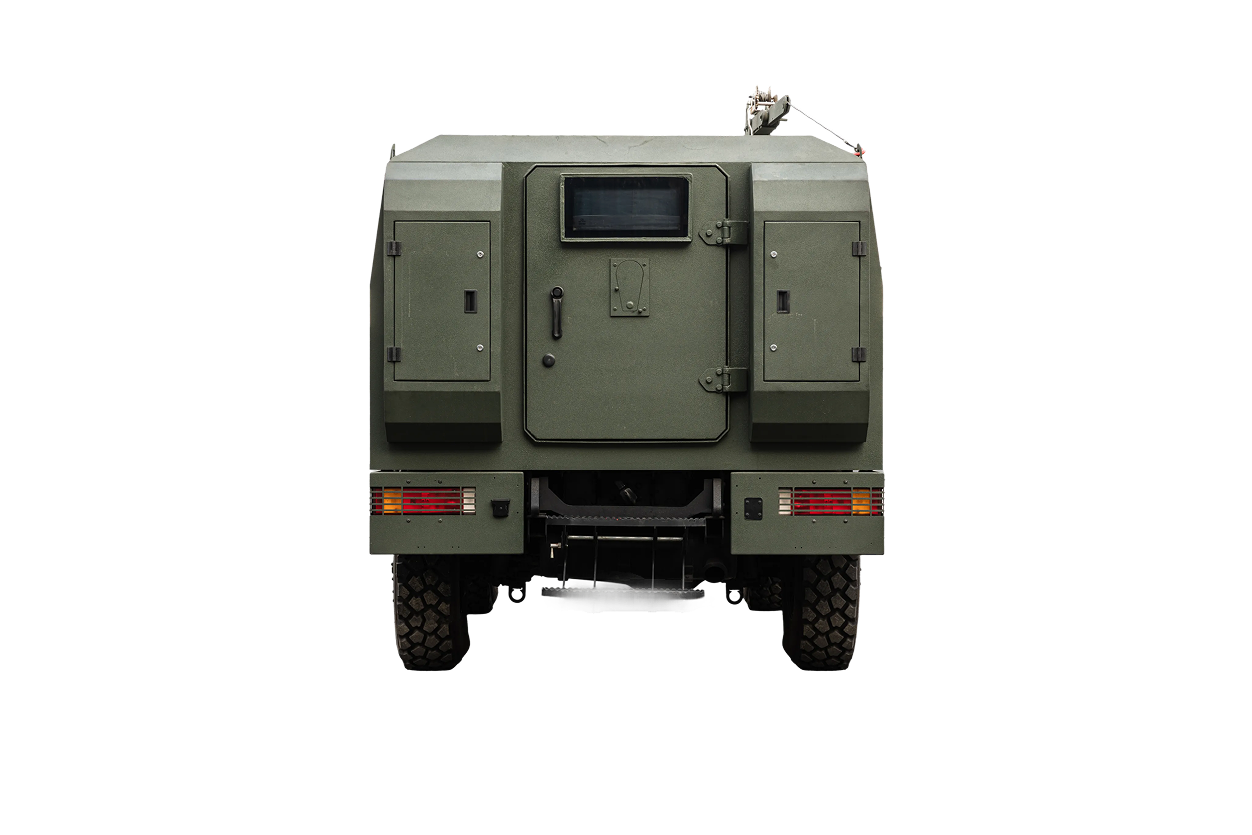

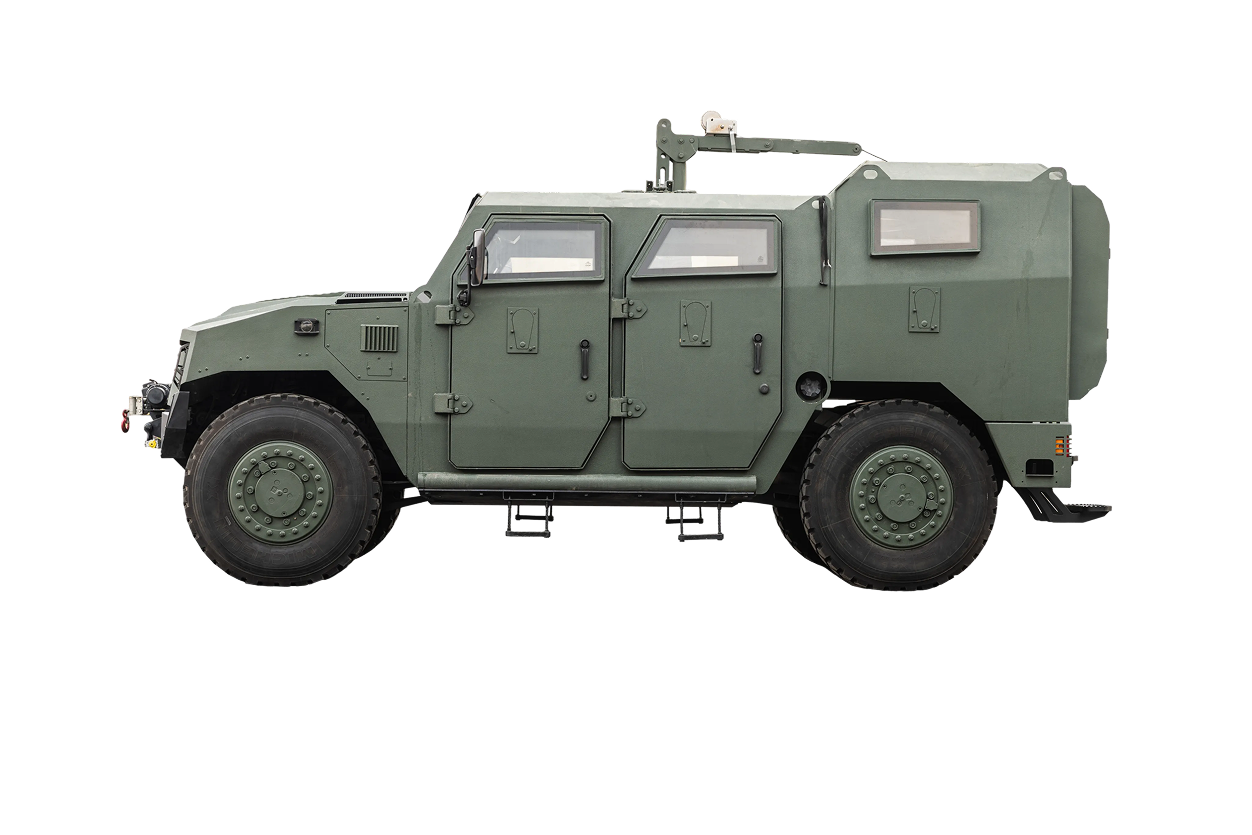

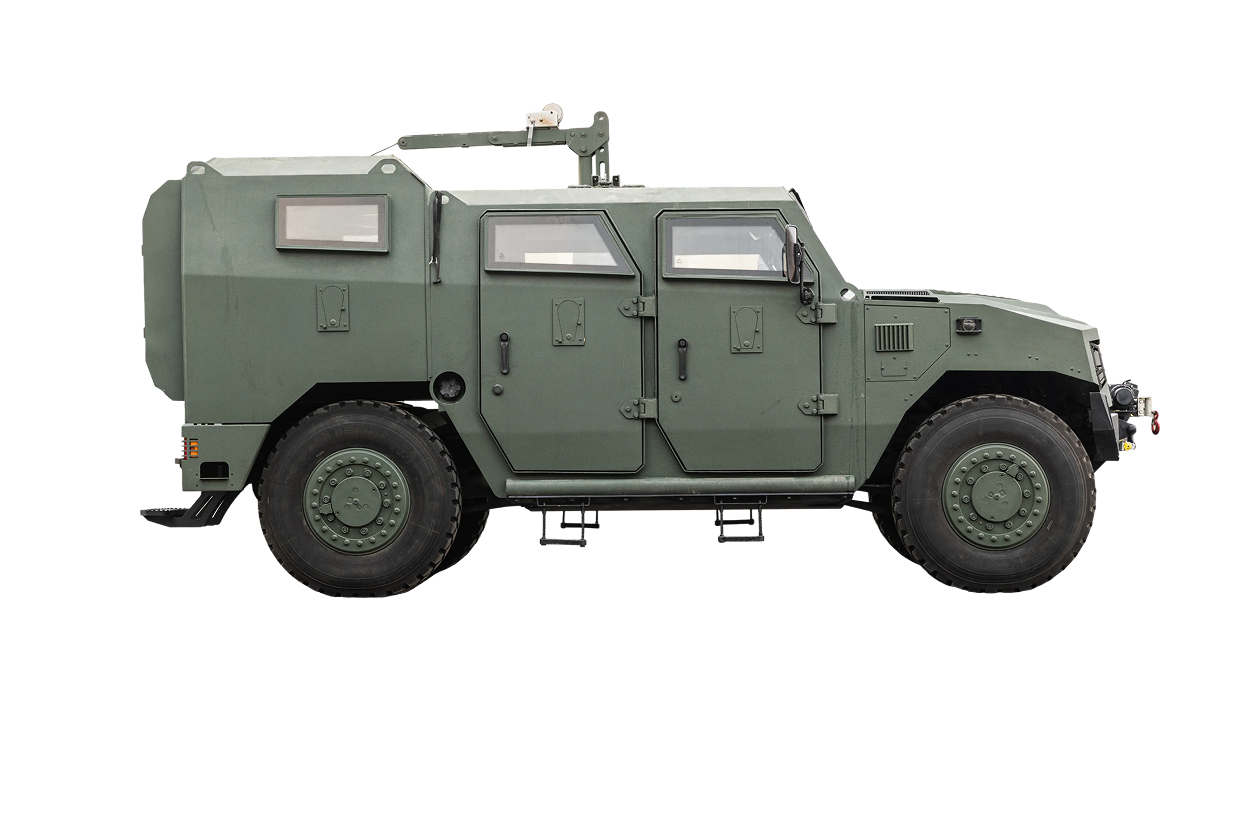

Temsah Sherpa
Comprehensive Armored Vehicle Solutions for Maximum Protection
Our Vehicles are Designed to Meet Defense Needs with the Latest Technology and Superior Performance
TECHNICAL SPECIFICATIONS
Type
4.7L-Diesel

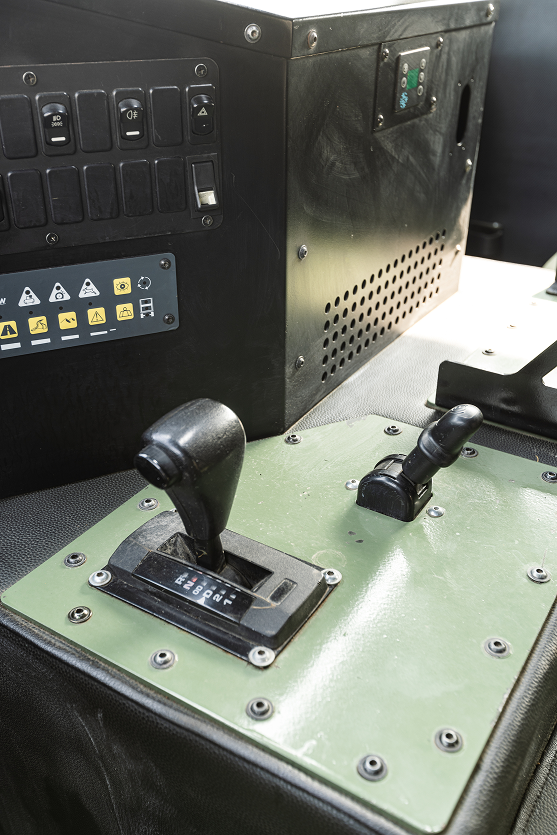

Transmission Type / Type de Transmission
Automatic
Max. Torque (N.m@rpm)/Couple maximale
1450@700
Max. Power (HP@rpm)/Puissance maximum
2300@180
Max. Speed Full load / Vitesse maximale apleine charges
100 (km/hr)
Max. Cruising Range / Autonomie maximal
800(Km)
Wheel drive / Rovés motrices
4X4
Total Lenath / Largeur total
6055
Max. Width / Lorgeur maximale
2422
Max.Height / Hauteur maximale
"3140 W/O turret 3270 W turret"
Wheel Base /Empattement
3540
Wheel Track / Piste deroue
2090

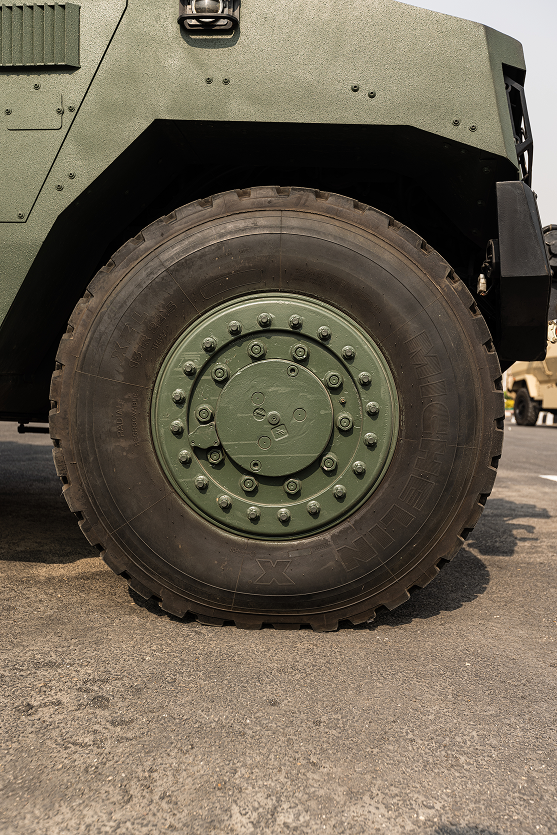

Tire size/ La taille des pneus
4+1 (335/80/R13,R20 or R 22.5)
G.V.W
9400
Curb Weight / Poids à vide
8695
Payload/charge utile
705
Ballistic Protection Level / Niveau de protection balistique
BR6
Landmine Protection Level / Niveau de protection des mines
STANAG 1
Anti-Blast Seat / Siège anti-souffle
Available
Gun Ports/Ports d' armes a' feu
7
External Cameras / Caméras externes
3
Night Vision Camera / Caméras de vision nocturne
1
91 Frontal Display/91 | Affichage frontal
Available
Crew/Equipage
2+4

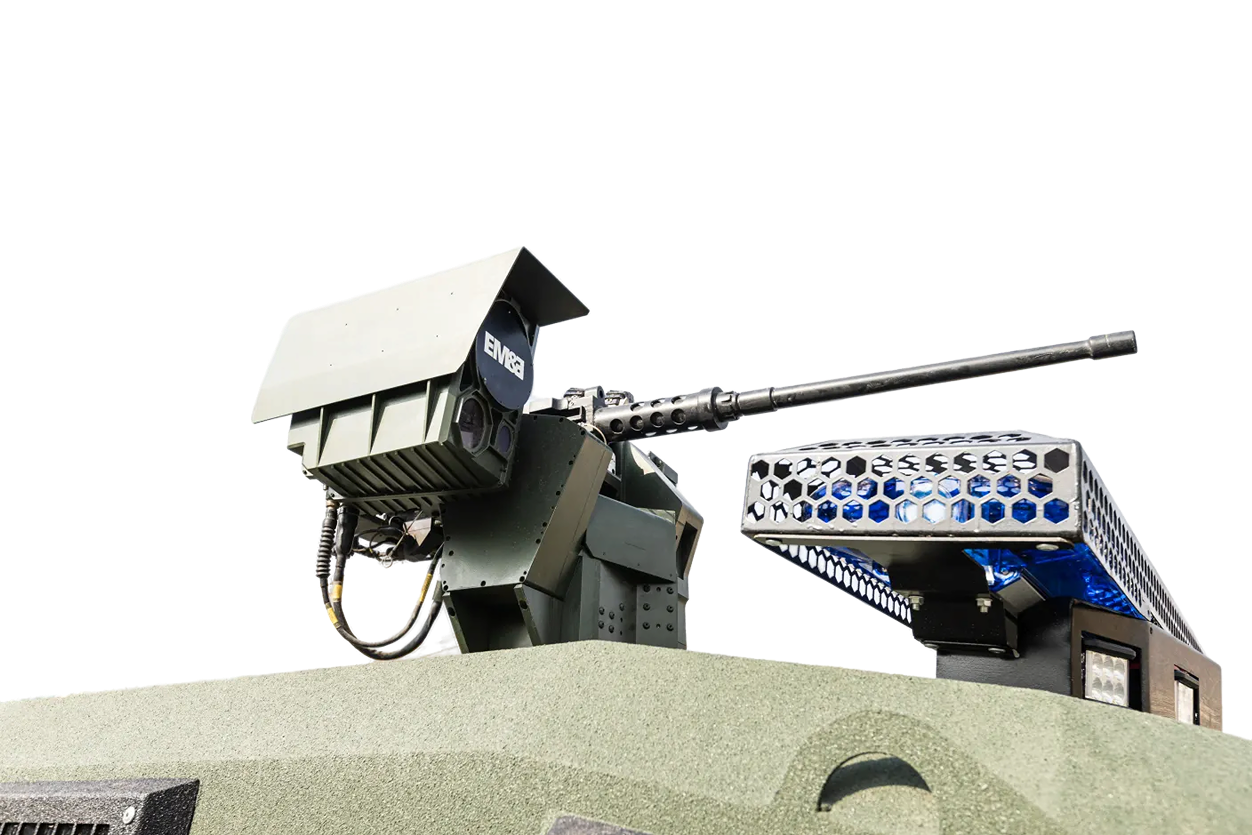

RCWS- Mounting equiped / Montage Rwcs équipé
Available
Advanced Impact Mat/ Tapis d'impact Avance
Available
