Temsah 3
Comprehensive Armored Vehicle Solutions for Maximum Protection
Our Vehicles are Designed to Meet Defense Needs with the Latest Technology and Superior Performance
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
TEMSAH-3
3-PICK UP
Type
6.5 L Turbo Diesel
6.5 L Turbo Diesel
Max. Torque (Nm@rpm)/Couple maximale
1700@460
460@1700
Max. Power (HP@pt)/Puissance maximum
32000205
20583200
Transmission Type
Automatic
Automatic
TECHNICAL SPECIFICATIONS

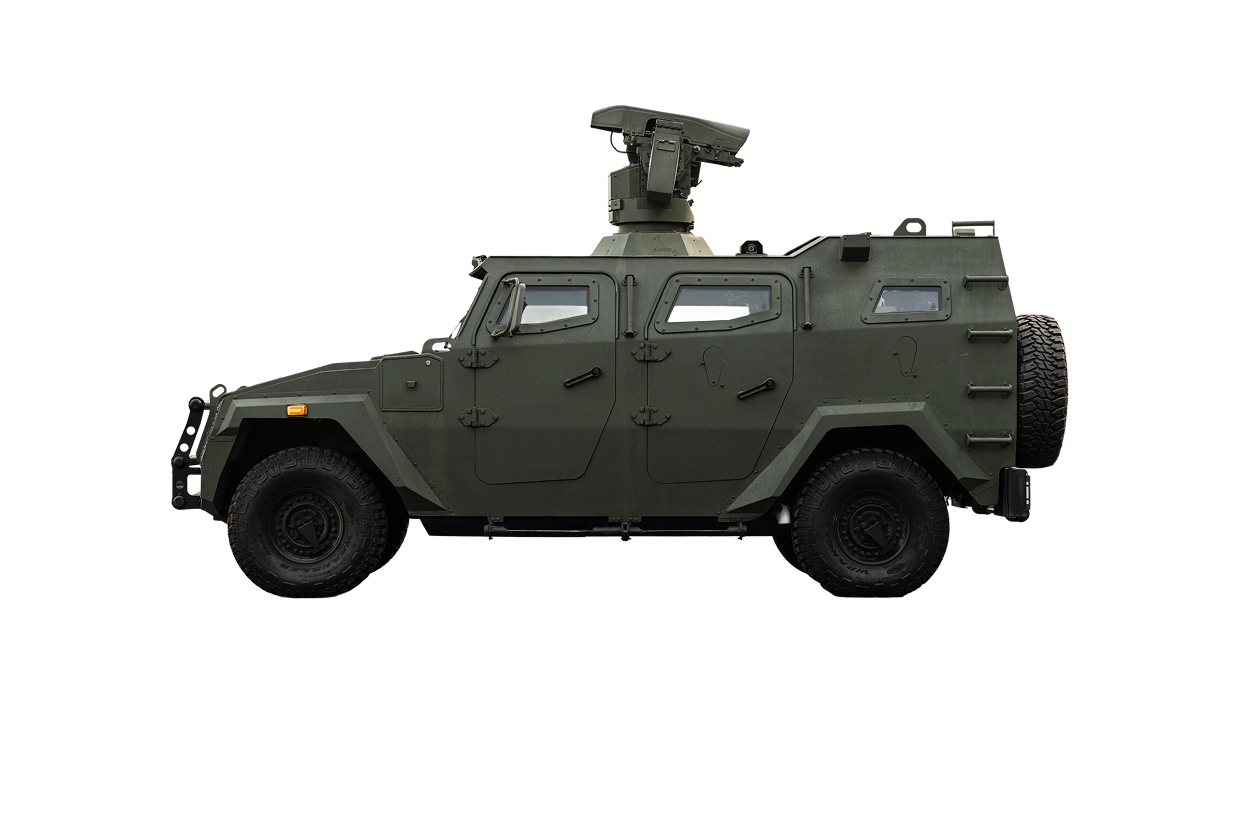

TEMSAH-3

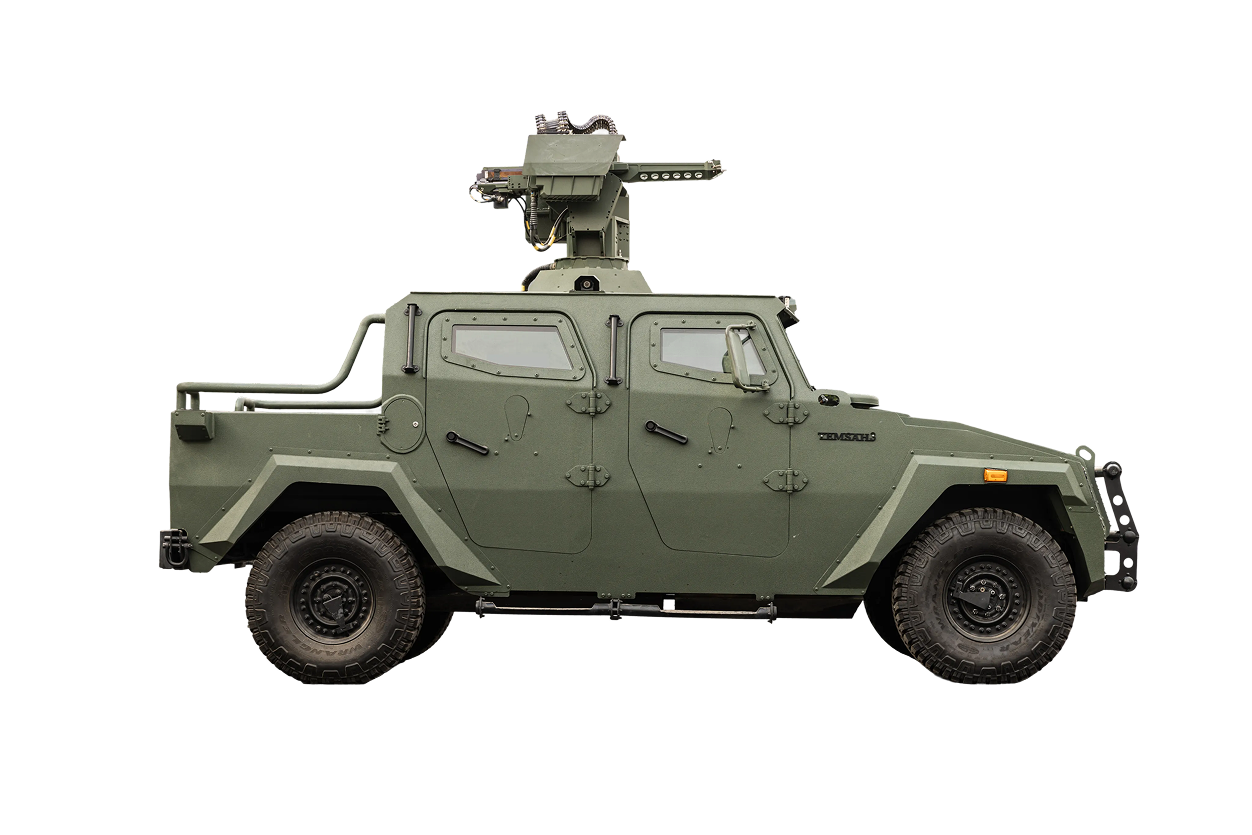

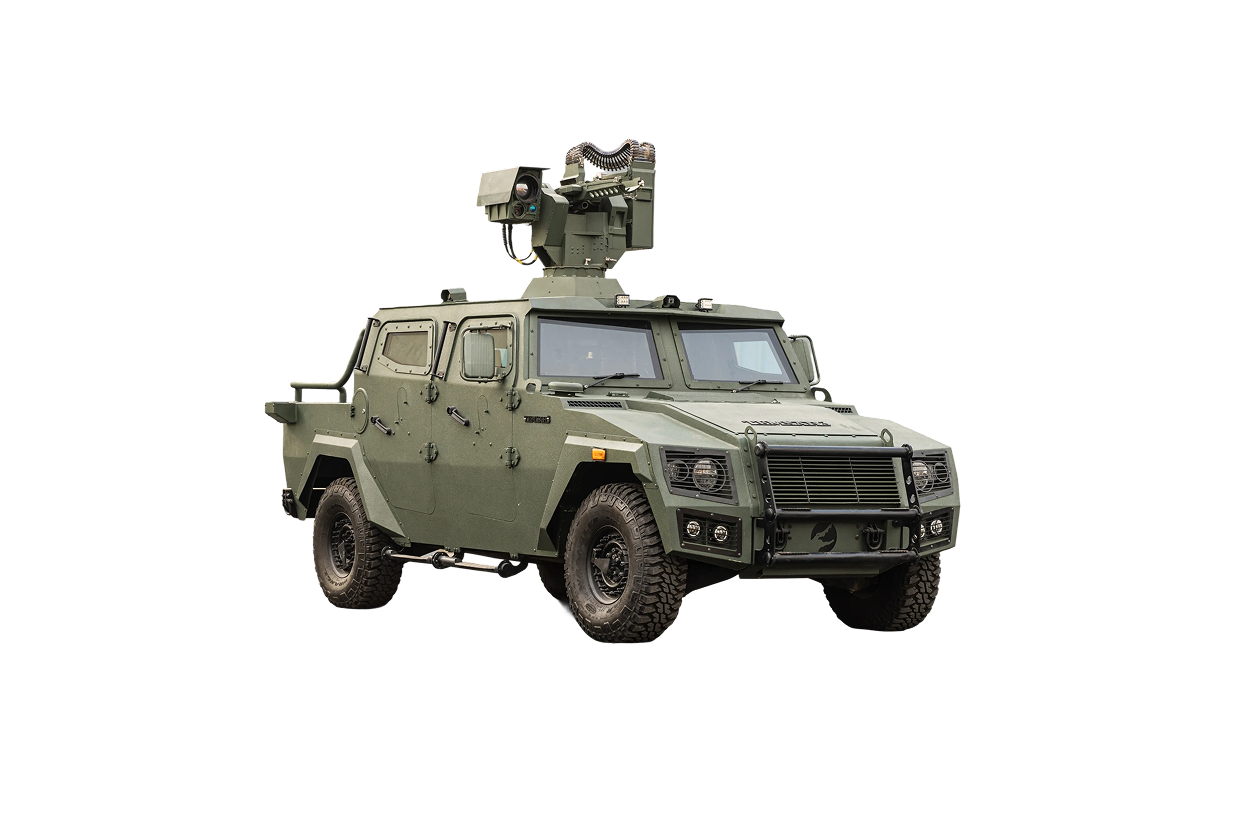

3-PICK UP
Wheel drive/Roués motrices
4x4
4x4
Max. Speed Full load/Vitesse maximale pleine
charges
125 (km/h)
125(km/hr)
Max Cruising Range/Autonomie maximale
442 (km)
442 (km)
TECHNICAL SPECIFICATIONS
TEMSAH-3
3-PICK UP
Total Length/Largeur total
"5000 W/O S. tire 5600 W S. fire
"5000 W/O 5. tire 5600 W S. fire"
Max. Width/Lorgeur maximale
2220
2220
Wheel Base/Empattement
3300
3300
Wheel Trock/Piste deroue
1800
1800
Min. Ground Clearance/Gardeau sol minimale
400
400

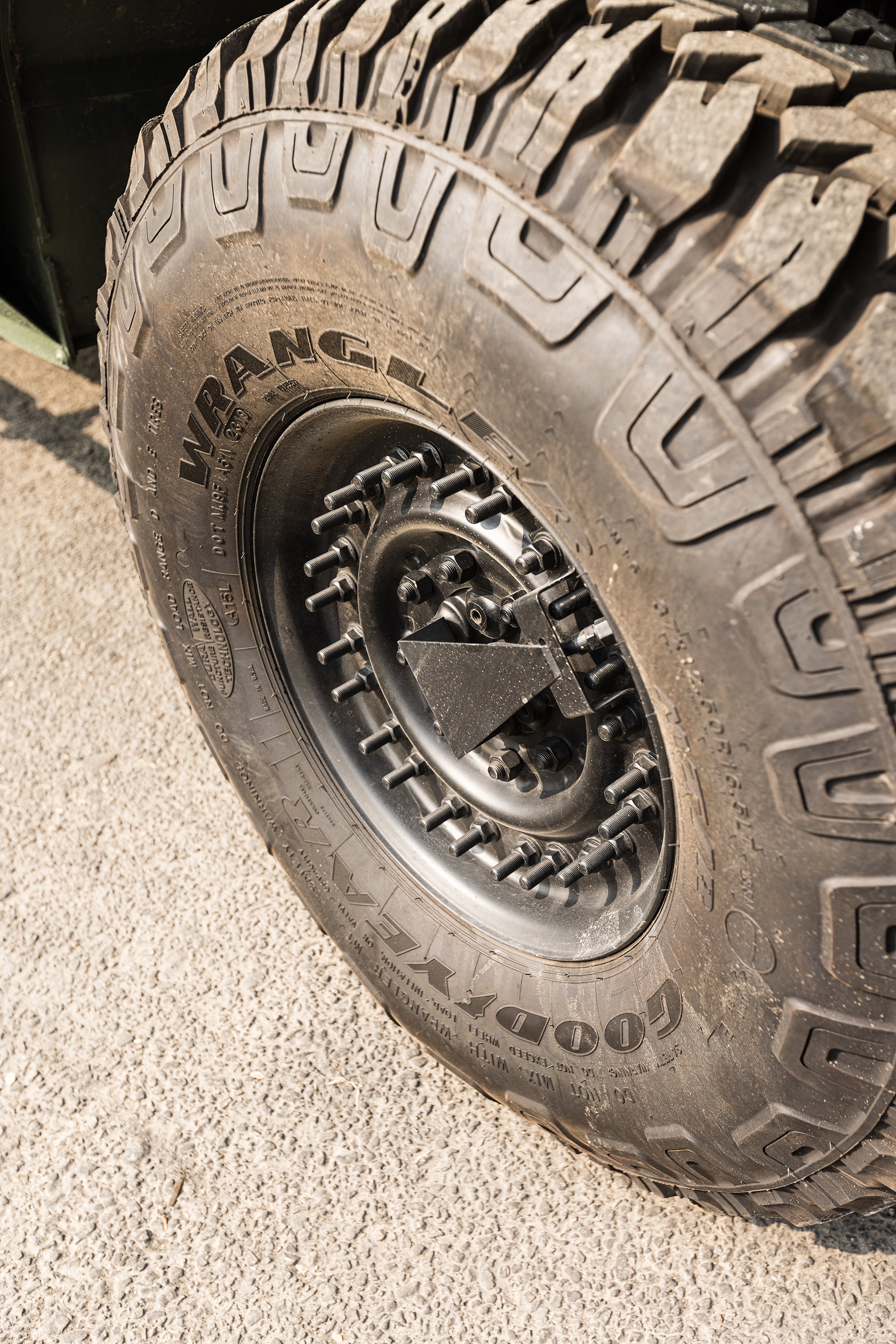

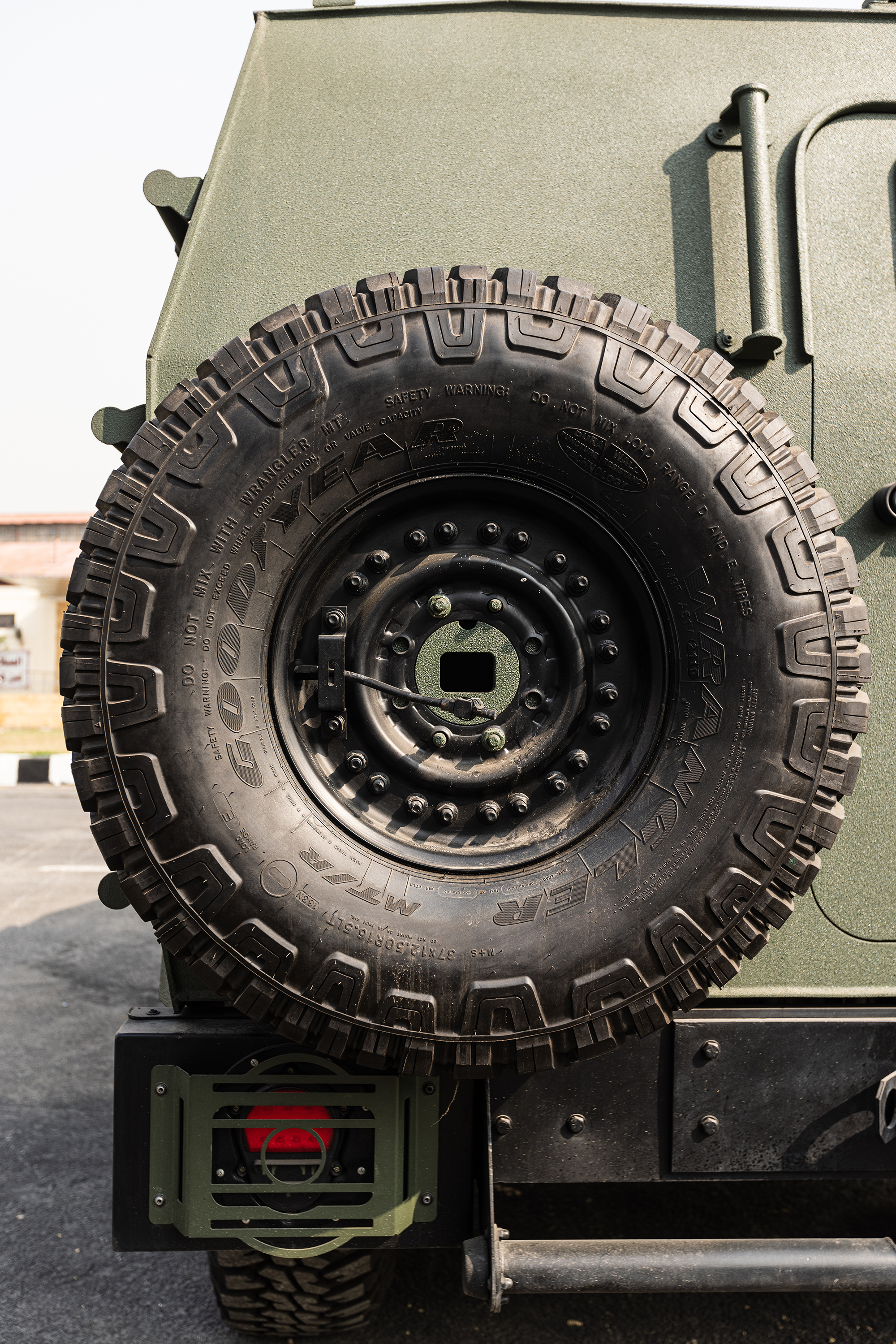

Tire size
4+1 (37/12.5/R16.5)
4+1 (37/12.5/R16.5)
CTS
Available
Available
TECHNICAL SPECIFICATIONS
TEMSAH-3
3-PICK UP
TG.V.W
6400
6400
Curb Weight/Poids à vide
5650
5450
Payload/charge Ufile
750
950
TECHNICAL SPECIFICATIONS
TEMSAH-3
3-PICK UP
Ballistic Protection Level / Niveau de
protection balistique
BR6
BR6
Curb Weight/Poids à videAnti-Blast Seat/Siège
anti souffle
Available
Available
Gun Ports/Ports d'armes a' feu
5
4

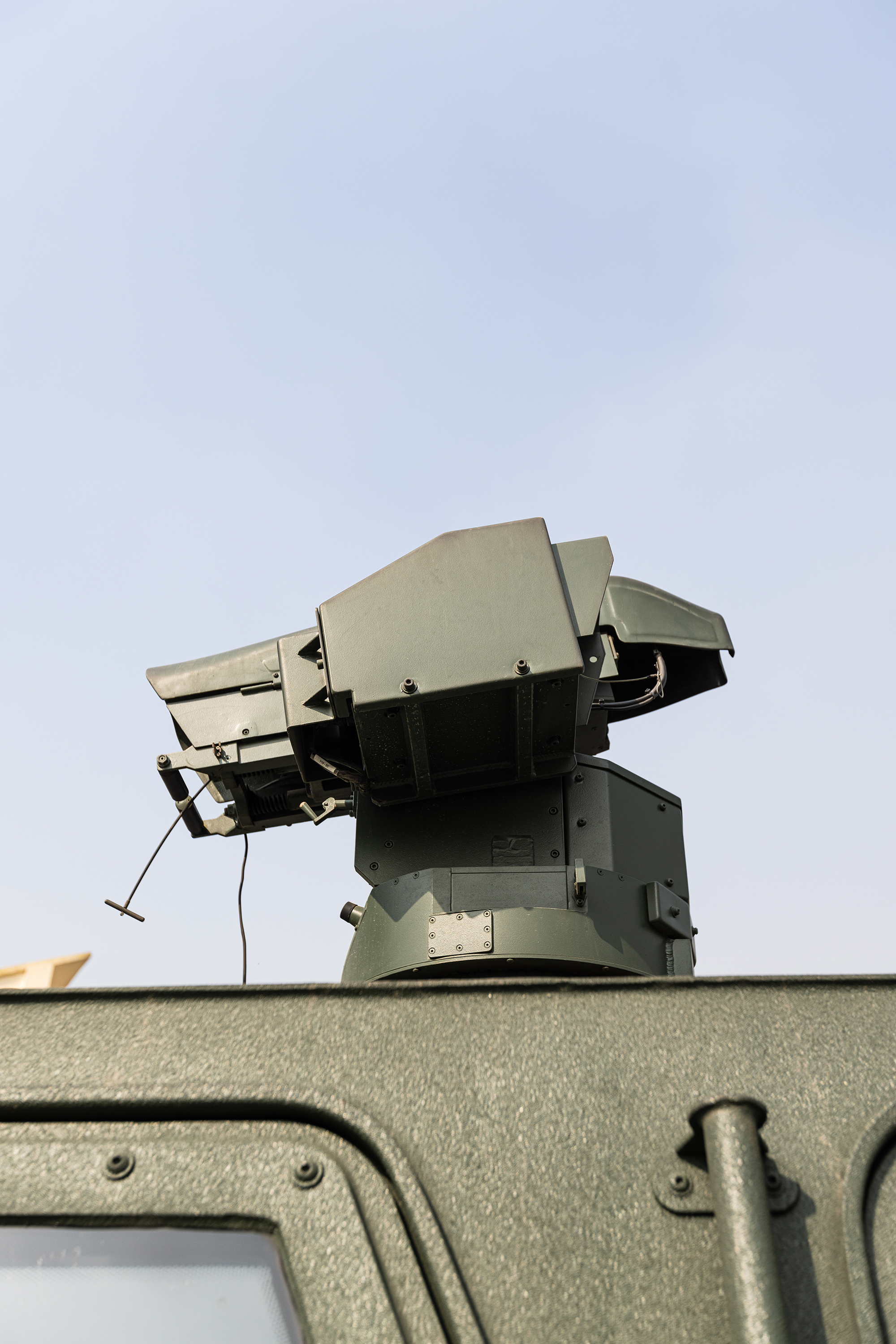

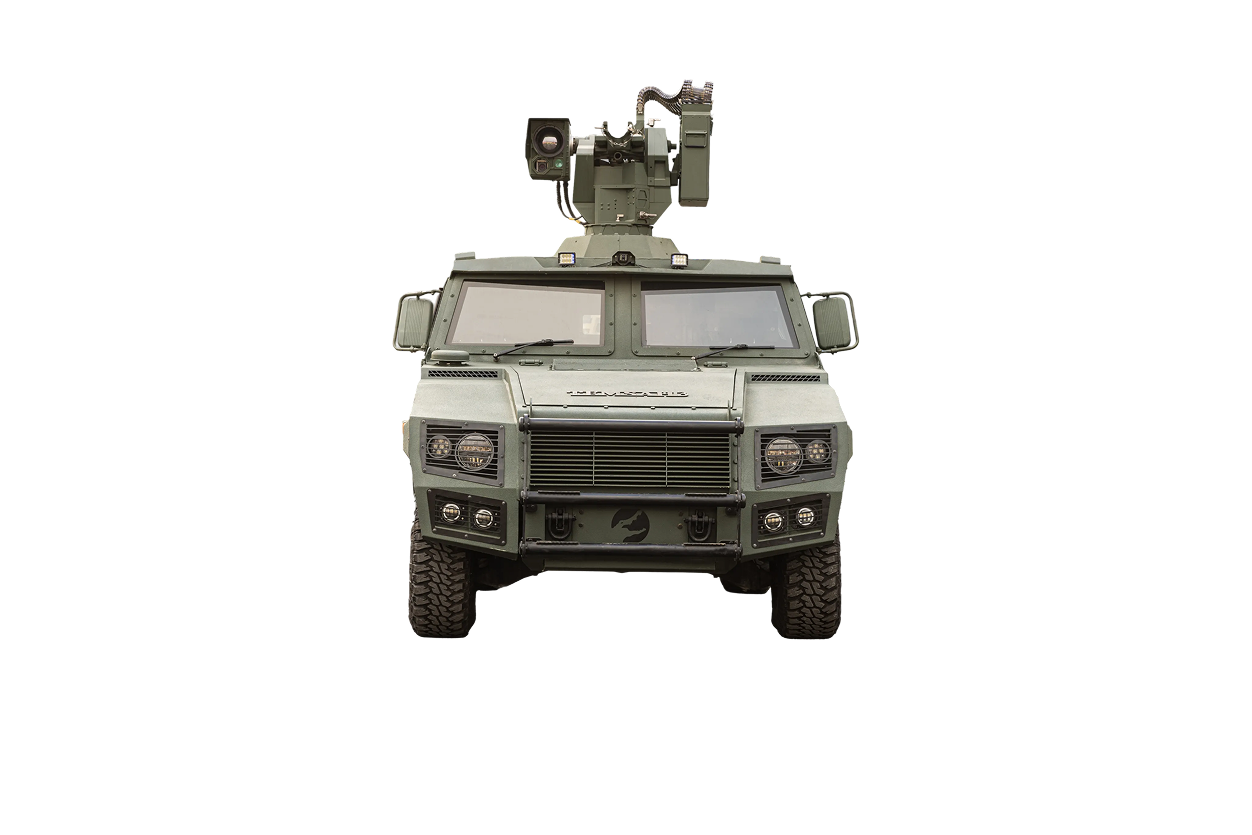

"360° Rotating Turret/Tourelle rotative à 360
360° Rotating Turret/Tourelle rotative & 360°
1
Run flat
Available
Available
TECHNICAL SPECIFICATIONS
TEMSAH-3
3-PICK UP

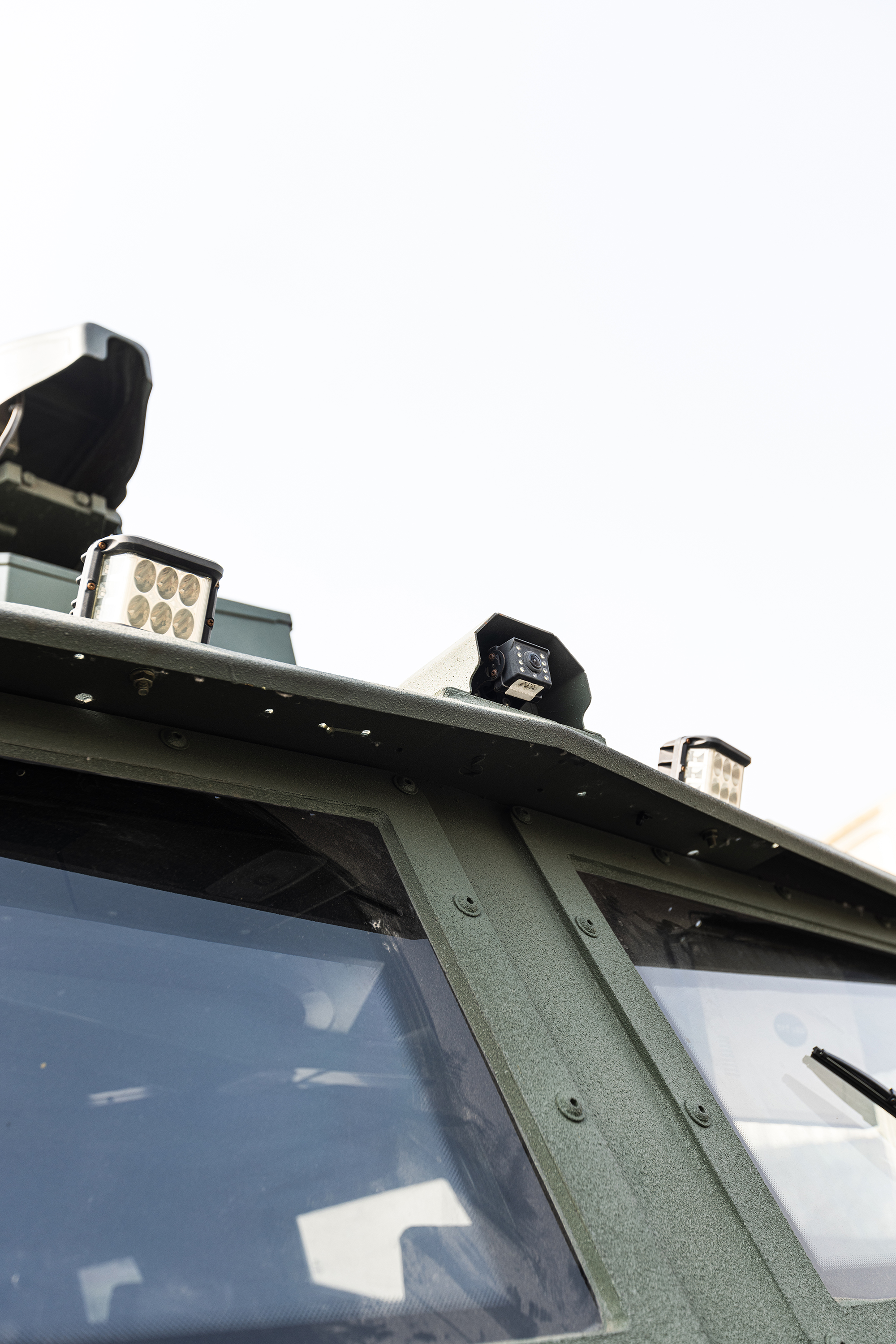

External Cameras/Caméras externes
3
3
Night Vision Camera/Cameras de vision nocturne
1
1
Frontal Display/Affichage frontal
Available
2
Crew/Equipage
2+4
2+2
TECHNICAL SPECIFICATIONS
TEMSAH-3
3-PICK UP
Gun base according to caliper/Base de pistolet selon étrier
Available
Available
Mat/Tapis
Available
Available
